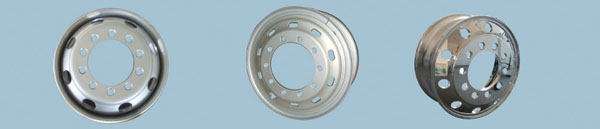

Truck Wheel
|
|
|
|
| Tubeless Wheel |
|
Size |
Offset(mm) |
Center Bore Dia(mm) |
Bolt Holes |
P.C.D(mm) |
Wheel weight(kg) |
Rim weight(kg) |
Total weight(kg) |
Mounting tyre |
|
17.5*6.75 |
153 |
176 |
10-¢176 |
225 |
14.6 |
10.9 |
25.5 |
9R17.5 |
|
19.5*6.00 |
135 |
164 |
6-¢32 |
222.25 |
15 |
17.1 |
32.1 |
8R19.5 |
|
19.5*7.50 |
150 |
221 |
8-¢26 |
275 |
18 |
15.3 |
33.3 |
9R19.5 |
|
22.5*6.60 |
133 |
214 |
8-32.5 |
275 |
17.3 |
18.4 |
35.7 |
8R22.5 |
|
22.5*6.75 |
142 |
214 |
8-32 |
275 |
18.6 |
13.6 |
32.2 |
9R22.5 |
|
22.5*7.50 |
152 |
220 |
10-¢26 |
285.75 |
23.5 |
21 |
44.5 |
10R22.5 |
|
22.5*8.25 |
168 |
222 |
10-¢32 |
285.7 |
25.4 |
21.8 |
47.2 |
11R22.5 |
|
22.5*9.00 |
165 |
281 |
10-¢26 |
335 |
26.8 |
19.7 |
46.5 |
12R22.5 |
|
22.5*11.75 |
0 |
281 |
10-¢26 |
335 |
31.9 |
12.1 |
44 |
385/65R22.5 |
|
24.5*8.25 |
168 |
221 |
10-¢26 |
285.75 |
27.8 |
24.2 |
52 |
11R24.5 | |
|
Tube Wheel |
|
Size |
Dia of Bore(mm) |
Bolt Hole |
Offset(mm) |
Thickness(mm) |
Mounting Tyre |
|
No. |
type(mm) |
Dia(mm) |
P.C.D(mm) |
|
5.50F-16 |
161 |
6 |
SR16 |
21.5 |
205 |
0 |
8 |
700-16 |
|
6.00G-16 |
161 |
6 |
SR16 |
21.5 |
205 |
0 |
8 |
750-16 |
|
6.00G-20 |
214 |
8 |
SR22 |
32.5 |
275 |
127 |
10 |
750-20 |
|
6.5-20 |
214 |
8 |
SR22 |
32 |
275 |
145 |
/ |
825-20 |
|
7.00T-20 |
214 |
8 |
SR22 |
32 |
275 |
147 |
12 |
900-20 |
|
7.50V-20 |
221 |
8 |
SR22 |
32.5 |
285 |
165 |
12 |
1000-20 |
|
8.00V-20 |
221 |
8 |
SR18 |
32.5 |
285 |
170 |
12 |
1100-20 |
|
8.5-20 |
281 |
10 |
/ |
27 |
335 |
172 |
14 |
1200-20 |
|
8.5-24 |
281 |
10 |
/ |
26 |
281 |
180 |
14 |
1200-24 | |
| Forged Alloy Wheel |
|
Size（inch） |
No Studs |
Stud Dia(mm) |
PCD (mm) |
CB(mm) |
Inset(mm) |
Outset(mm) |
Thickness(mm) |
Max Load(LBS) |
|
22.5*8.25 |
10 |
26.75 |
285.75 |
220 |
144 |
168 |
24 |
7400 |
|
22.5*8.25 |
10 |
32.5 |
335 |
281.2 |
144 |
168 |
24 |
7400 |
|
22.5*8.25 |
10 |
26.75 |
335 |
281.2 |
144 |
168 |
24 |
7400 |
|
22.5*8.25 |
10 |
32.5R22 |
285.75 |
221 |
144 |
168 |
24 |
7400 |
|
24.5*8.25 |
10 |
26.75 |
285.75 |
220 |
144 |
168 |
24 |
8000 |
|
24.5*8.25 |
10 |
32.5R22 |
285.75 |
221 |
144 |
168 |
24 |
8000 |
|
22.5*9.00 |
10 |
26.75 |
335 |
281.2 |
153 |
175 |
24 |
9090 |
|
22.5*11.75 |
10 |
26 |
335 |
281.2 |
0 |
22 |
24 |
9915 | | |
